G系列O型圈
您現在的位置是(shi):
G系列O型圈
發(fa)布日(ri)期：2023-11-27
-
-
JIS

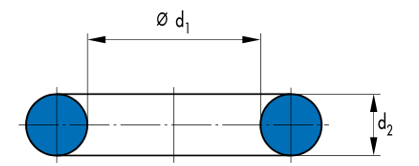

公稱編號o型密封圈的尺寸 線徑 d2 內徑 d1 G 3 3.1 ±0.10 2.4 ±0.14 G 4 3.4 ±0.14 G 5 4.4 ±0.15 G 6 5.4 ±0.15 G 7 6.4 ±0.16 G 8 7.4 ±0.16 G 9 8.4 ±0.17 G 10 9.4 ±0.17 G 11 10.4 ±0.18 G 12 11.4 ±0.18 G 13 12.4 ±0.19 G 14 13.4 ±0.19 G 15 14.4 ±0.20 G 16 15.4 ±0.20 G 17 16.4 ±0.21 G 18 17.4 ±0.21 G 19 18.4 ±0.22 G 20 19.4 ±0.22 G 21 20.4 ±0.23 G 22 21.4 ±0.24 G 23 22.4 ±0.24 G 24 23.4 ±0.24 G 25 24.4 ±0.25 G 30 29.4 ±0.29 G 35 34.4 ±0.33 G 40 39.4 ±0.37 G 45 44.4 ±0.41 G 50 49.4 ±0.45 *G 52 51.4 ±0.47 G 55 54.4 ±0.49 *G 58 57.4 ±0.51 G 60 59.4 ±0.53 *G 62 61.4 ±0.54 *G 63 62.4 ±0.55 *G 64 63.4 ±0.56 G 65 64.4 ±0.57 *G 67 66.4 ±0.59 G 70 69.4 ±0.61 *G 72 71.4 ±0.63 G 75 74.4 ±0.65 G 80 79.4 ±0.69 G 85 84.4 ±0.73 G 90 89.4 ±0.77 G 95 94.4 ±0.81 G 100 99.4 ±0.85 G 105 104.4 ±0.87 G 110 109.4 ±0.91 G 115 114.4 ±0.94 G 120 119.4 ±0.98 G 125 124.4 ±1.01 G 130 129.4 ±1.05 G 135 134.4 ±1.08 G 140 139.4 ±1.12 G 145 144.4 ±1.16 *GS 150 3.1 ±0.10 149.3 ±1.19 *GS 155 154.3 ±1.23 *GS 160 159.3 ±1.26 *GS 165 164.3 ±1.30 *GS 170 169.3 ±1.33 *GS 175 174.3 ±1.37 *GS 180 179.3 ±1.40 *GS 185 184.3 ±1.44 *GS 190 189.3 ±1.47 *GS 195 194.3 ±1.51 *GS 200 199.3 ±1.55 *GS 205 204.3 ±1.58 *GS 210 209.3 ±1.61 *GS 215 214.3 ±1.65 *GS 220 219.3 ±1.68 *GS 225 224.3 ±1.71 *GS 230 229.3 ±1.75 *GS 235 234.3 ±1.78 *GS 240 239.3 ±1.81 *GS 245 244.3 ±1.85 *GS 250 249.3 ±1.88 *GS 255 254.3 ±1.91 *GS 260 259.3 ±1.94 *GS 265 264.3 ±1.98 *GS 270 269.3 ±2.01 *GS 275 274.3 ±2.04 *GS 280 279.3 ±2.07 *GS 285 284.3 ±2.11 *GS 290 289.3 ±2.14 *GS 295 294.3 ±2.17 *GS 300 299.3 ±2.20 *GS 305 3.1 ±0.12 304.3 ±2.24 *GS 310 309.3 ±2.27 *GS 315 314.3 ±2.30 *GS 320 319.3 ±2.33 *GS 325 324.3 ±2.36 *GS 330 329.3 ±2.39 *GS 335 334.3 ±2.42 *GS 340 339.3 ±2.45 *GS 345 344.3 ±2.48 *GS 350 349.3 ±2.51 *GS 355 354.3 ±2.54 *GS 360 359.3 ±2.57 *GS 365 364.3 ±2.60 *GS 370 369.3 ±2.63 *GS 375 374.3 ±2.67 *GS 380 379.3 ±2.70 *GS 385 384.3 ±2.73 *GS 390 389.3 ±2.77 *GS 395 394.3 ±2.79 *GS 400 399.3 ±2.82 *GS 405 404.3 ±3.00 *GS 410 409.3 *GS 415 414.3 *GS 420 419.3 *GS 425 424.3 *GS 430 429.3 *GS 435 434.3 *GS 440 439.3 *GS 445 444.3 *GS 450 449.3 *GS 455 454.3 ±3.30 *GS 460 459.3 *GS 465 464.3 *GS 470 469.3 *GS 475 474.3 *GS 480 479.3 *GS 485 484.3 *GS 490 489.3 *GS 495 494.3 *GS 500 499.3 G 150 5.7 ±0.13 149.3 ±1.19 G 155 154.3 ±1.23 G 160 159.3 ±1.26 G 165 164.3 ±1.30 G 170 169.3 ±1.33 G 175 174.3 ±1.37 G 180 179.3 ±1.40 G 185 184.3 ±1.44 G 190 189.3 ±1.47 G 195 194.3 ±1.51 G 200 199.3 ±1.55 *G 205 204.3 ±1.58 G 210 209.3 ±1.61 *G 215 214.3 ±1.65 G 220 219.3 ±1.68 *G 225 224.3 ±1.71 G 230 229.3 ±1.73 *G 235 234.3 ±1.78
|
JIS 公稱編號 |
Ｏ形圈的尺寸 | |||
| 線徑 W | 內徑 d | |||
| G 240 | 5.7 | ±0.13 | 239.3 | ±1.81 |
| *G 245 | 244.3 | ±1.84 | ||
| G 250 | 249.3 | ±1.88 | ||
| *G 255 | 254.3 | ±1.91 | ||
| G 260 | 259.3 | ±1.94 | ||
| *G 265 | 264.3 | ±1.97 | ||
| G 270 | 269.3 | ±2.01 | ||
| *G 275 | 274.3 | ±2.04 | ||
| G 280 | 279.3 | ±2.07 | ||
| *G 285 | 284.3 | ±2.10 | ||
| G 290 | 289.3 | ±2.14 | ||
| *G 295 | 294.3 | ±2.17 | ||
| G 300 | 299.3 | ±2.20 | ||
| *G 305 | 304.3 | ±2.24 | ||
| *G 310 | 309.3 | ±2.27 | ||
| *G 315 | 314.3 | ±2.30 | ||
| *G 320 | 319.3 | ±2.33 | ||
| *G 325 | 324.3 | ±2.36 | ||
| *G 330 | 329.3 | ±2.39 | ||
| *G 335 | 334.3 | ±2.42 | ||
| *G 340 | 339.3 | ±2.45 | ||
| *G 345 | 344.3 | ±2.48 | ||
| *G 350 | 349.3 | ±2.51 | ||
| *G 355 | 354.3 | ±2.54 | ||
| *G 360 | 359.3 | ±2.57 | ||
| *G 365 | 364.3 | ±2.60 | ||
| *G 370 | 369.3 | ±2.63 | ||
| *G 375 | 374.3 | ±2.67 | ||
| *G 380 | 379.3 | ±2.70 | ||
| *G 385 | 384.3 | ±2.73 | ||
| *G 390 | 389.3 | ±2.77 | ||
| *G 395 | 394.3 | ±2.79 | ||
| *G 400 | 399.3 | ±2.82 | ||
| *G 405 | 5.7 | ±0.15 | 404.3 | ±3.00 |
| *G 410 | 409.3 | |||
| *G 415 | 414.3 | |||
| *G 420 | 419.3 | |||
| *G 425 | 424.3 | |||
| *G 430 | 429.3 | |||
| *G 435 | 434.3 | |||
| *G 440 | 439.3 | |||
| *G 445 | 444.3 | |||
| *G 450 | 449.3 | |||
| *G 455 | 454.3 | ±3.30 | ||
| *G 460 | 459.3 | |||
| *G 465 | 464.3 | |||
| *G 470 | 469.3 | |||
| *G 475 | 474.3 | |||
| *G 480 | 479.3 | |||
| *G 485 | 484.3 | |||
| *G 490 | 489.3 | |||
| *G 495 | 494.3 | |||
| *G 500 | 499.3 | |||
| *G 505 | 504.3 | ±3.70 | ||
| *G 510 | 509.3 | |||
| *G 515 | 514.3 | |||
| *G 520 | 519.3 | |||
| *G 525 | 524.3 | |||
| *G 530 | 529.3 | |||
| *G 535 | 534.3 | |||
| *G 540 | 539.3 | |||
| *G 545 | 544.3 | |||
| *G 550 | 549.3 | |||
| *G 555 | 554.3 | |||
